Sampling Valve — Flanged Ends
Inline-flanged sampling valve for permanent installation between standard pipe flanges. PTFE chevron packing, PFA-lined investment cast body.
1" – 2"
Size Range
Flanged, RF
Connection
200mm / 7.87"
Face to Face
SMVF
Code Prefix
Flanged-End Sampling Valve Configuration
The Flanged Ends sampling valve is installed inline between two pipe flanges, providing a permanent and vibration-resistant mounting position. The companion flange and lock plate ensure secure placement during repeated operation cycles.
This configuration is the preferred choice for new pipeline construction where pipe length can accommodate the 200mm face-to-face dimension, and where long-term, frequent sampling operations require maximum mechanical stability.
The wetted parts — PTFE chevron packing, PTFE socket, PTFE spindle, and PFA-lined investment-cast WCB body — deliver full corrosion resistance across the same media compatibility as the Sandwich Wafer variant.
Specifications, Parts, Dimensions
Specifications
| Design Std | Manufacturer's Standard |
| Shell Design | ANSI B 16.34 |
| Face to Face Dim. | Manufacturer's Standard (200mm / 7.87") |
| Flange Connection Rating | ANSI B 16.5 150# / DIN PN 10 |
| Testing Standard | BS EN 12266-1 |
| Connection | Flanged, RF |

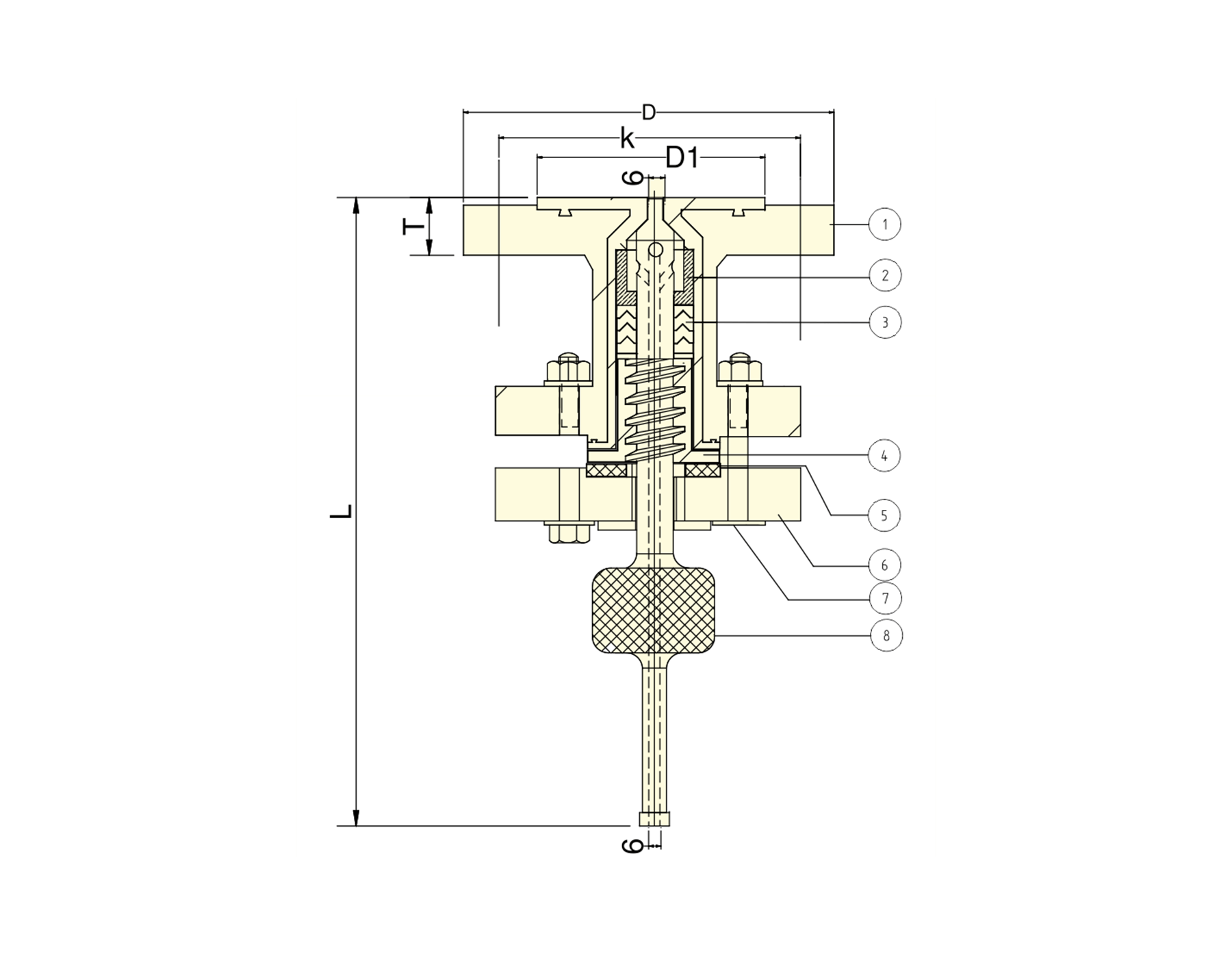

Part List
| Part No. | Description | Material of Construction | Qty |
|---|---|---|---|
| 1 | Body | ASTM A 216 GR. WCB + PFA Lined | 1 |
| 2 | Material Port | PTFE | 1 |
| 3 | Chevron Packing | PTFE | 1 |
| 4 | Socket | PTFE | 1 |
| 5 | Lock Plate | SS 304 | 1 |
| 6 | Companion Flange | SS 304 | 1 |
| 7 | Fasteners | SS 304 | 3 |
| 8 | Spindle | PTFE | 1 |
Dimension Table
All dimensions in inches and millimeters.
| Size (NB) | A ±0.12 | D3 ±0.04 | T +0.12/-0.00 | D1 ±0.02 | K ±0.06 | n | Ø | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | ||
| 1" | 7.87 | 200 | 4.25 | 108 | 0.59 | 15 | 2 | 51 | 3.11 | 79 | 4 | 5/8 | 16 |
| 2" | 7.87 | 200 | 5.98 | 152 | 0.81 | 20.5 | 3.62 | 92 | 4.76 | 121 | 4 | 3/4 | 19 |
Valve Net Weight
| Size | Weight (kg) | Weight (lb) |
|---|---|---|
| 1" | 2.00 | 4.40 |
| 2" | 3.10 | 6.83 |
How to Read Valve Code
Example code: SMVFC1PTL1XXF1LX01
| Field | Selection | Code |
|---|---|---|
| Valve Type | Sampling Valve Flanged | SMVF |
| Casting | ASTM A 216 GR. WCB | C1 |
| Trim | PTFE | PT |
| Lining Material | PFA | L1 |
| Seat | Integral PFA | XX |
| Fastener | Steel Plated | F1 |
| Operation | Lever | L |
| Locking Arrangement | Not Applicable | X |
| Size | 1" | 01 |
Tests Performed
| Test | EN 12266-1 (1" – 2") |
|---|---|
| High Pressure Shell Test (Hydro) | 75 PSI |
| Spark Test | 20 KVDC |
Materials Available
| Component | Options Available |
|---|---|
| Castings | ASTM A 216 GR. WCB, ASTM A 351 GR. CF8 / CF8M, Hastelloy C 276 / Inconel |
| Lining Materials | PFA / FEP / ETFE / PVDF / PPH |
Pressure - Temperature Graph
Operating envelope across both Flanged and Sandwich configurations.
